SGT100A
Price by Request
Savings: N/A

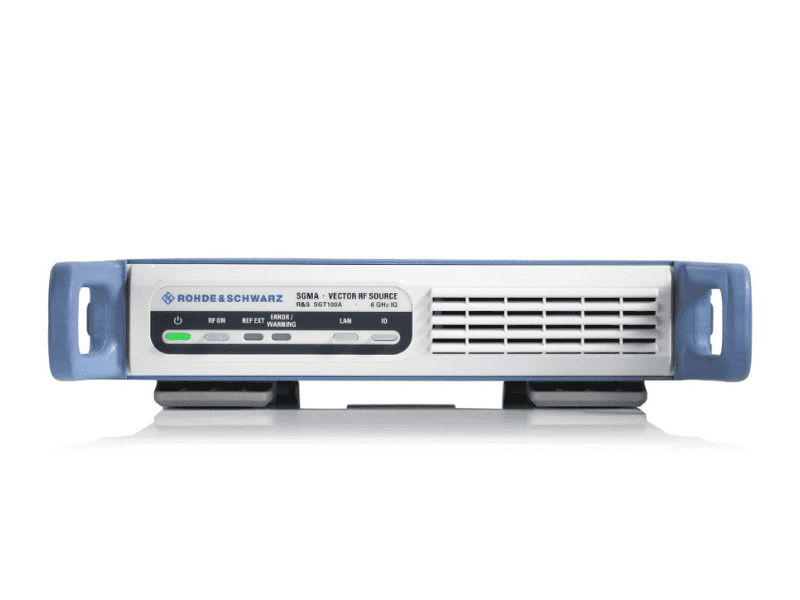

The R&S®SGT100A is designed for automated environments, featuring high speed and a compact design. It offers optimized RF chain for fast frequency and level switchover, multi segment waveform mode for quick signal switching, and excellent RF characteristics for production environments, along with LAN and USB interfaces for remote control.
SGT100A Features
Key Facts
- Fast frequency and level switchover times
- I/Q modulation bandwidth of up to 240 MHz
- Excellent RF characteristics for best EVM and ACLR performance
- Easy signal generation for digital standards such as 5G or WLAN
- Ideal enhancement for the R&S;®SMW200A in MIMO applications
Specifications
- Frequency Range: 1 MHz – 6 GHz
- Output Power: -120 dBm to +17 dBm
- Modulation Bandwidth: 240 MHz
- SSB phase noise: ≤ –126 dBc
- Harmonics: < -30 dBc
