SMB100B
Price by Request
Savings: N/A

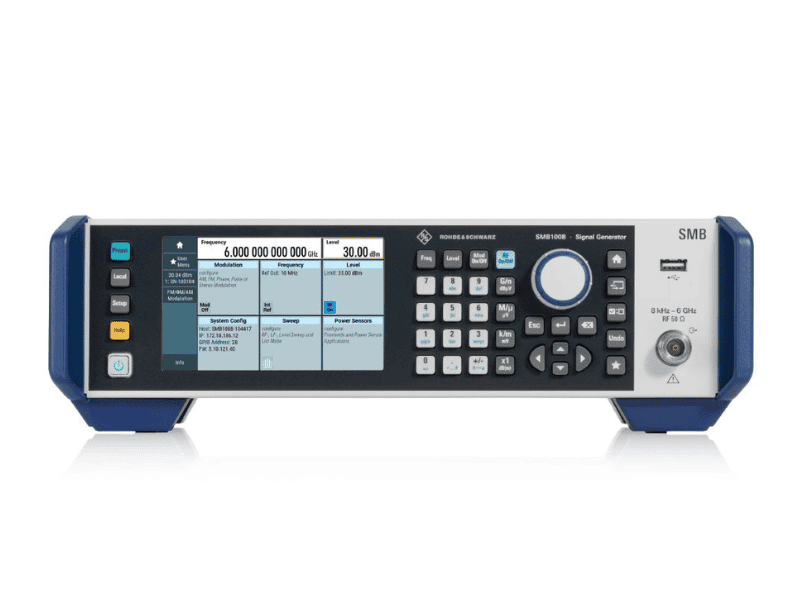

The R&S®SMB100B RF signal generator offers exceptional spectral purity and high output power in a compact design. With a frequency range up to 6 GHz and user-friendly operation, it provides comprehensive functionality.
SMB100B Features
Key Facts
- Frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz
- Outstanding single sideband (SSB) phase noise of < –134 dBc (meas.) at 1 GHz and an offset of 20 kHz
- Very low wideband noise of < –153 dBc (typ.) at 15 MHz < f ≤ 6 GHz and an offset of 30 MHz
- Ultra high output power of 34 dBm (meas.) at 1 GHz
- Compact form factor of 2 HU and 3/4 19″ width
Specifications
- Frequency Range: 8 kHz – 6 GHz
- Output Power: -127 dBm to +26 dBm
- SSB phase noise: ≤ –126 dBc
- Harmonics: < -30 dBc
