SMM100A
Price by Request
Savings: N/A

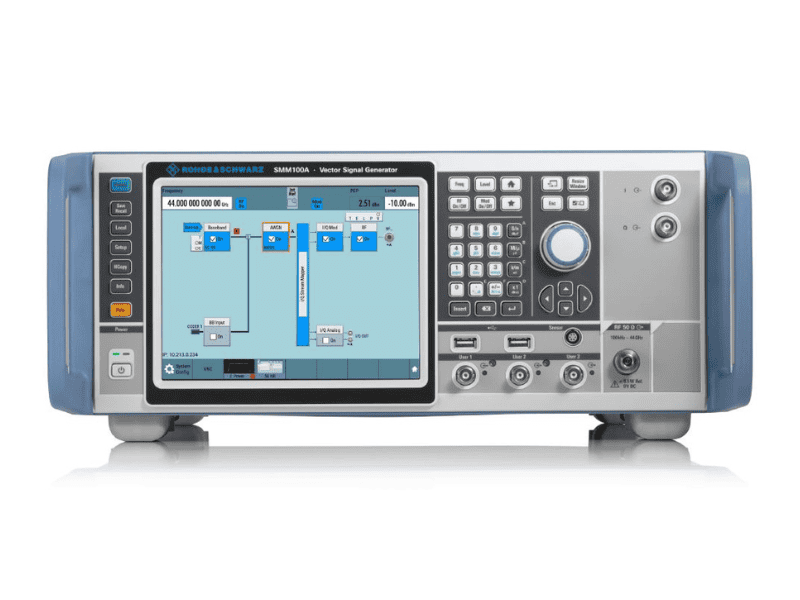

The R&S®SMM100A vector signal generator offers excellent RF characteristics from 100 kHz to 44 GHz, covering existing wireless standards below 6 GHz and new bands for 5G NR FR1, Wi-Fi 6E up to 7.125 GHz, and 5G NR FR2 bands up to 44 GHz. Its internal base band generator supports a maximum RF modulation bandwidth of 1 GHz, enabling the generation of digitally modulated broadband signals required by current and future wireless standards.
SMM100A Features
Key Facts
- Frequency range from 100 kHz to 44 GHz
- Internal RF modulation bandwidth of up to 1 GHz
- Excellent modulation frequency response, EVM and ACPR
- 5G NR signal generation for FR1 and FR2
- Ready for future WLAN frequency and bandwidth requirements
Specifications
- Frequency Range: 100 kHz – 67 GHz
- Output Power: -120 dBm to +18 dBm
- Modulation Bandwidth: 1 GHz
- SSB phase noise: ≤ –129 dBc
- Harmonics: < -55 dBc
