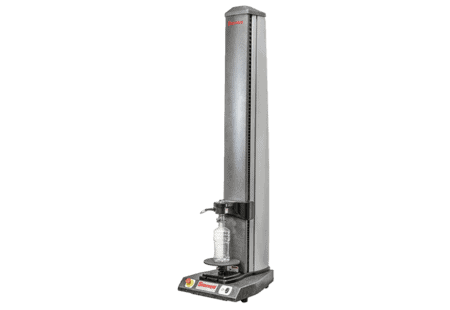

Starrett MMS-2500-L3 Material Measurement System

• Turnkey 2500N (560lbf) Material Measurement System includes Testing Frame, L3 Controller with L3 Force Measurement Software
• Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
• Perform Complex Multi-stage Testing Using Advanced Test Builder Application
• Small, Compact Footprint (15″W x 20.25″D)
• Use the Analysis Tools to Measure and Display Results on a Single Graph
• High Resolution Encoder for Precise Position Control Resolution
• Dual Strain Channels for Extensometers

• Frame Type: Single Column
• User Interface: All-In-One PC
• Load Capacity: 2500N, 560lbf, 250kgf
• Maximum Speed: 60″/min, 1525mm/min
• Minimum Speed: 0.00004″/min, 0.001mm/min
• Maximum Load @ Full Speed: 2500N, 560lbf, 250kgf
• Maximum Speed @ Full Load: 60″/min, 1525mm/min
• Return Speed: 60″/min, 1525mm/min
• Total Crosshead Travel: 40″, 1016mm
• Total Vertical Test Space: 49.5″, 1257mm
• Crosshead Throat Depth: 4.25″, 108mm
• Height: 62″, 1575mm
• Width: 15″, 381mm
• Depth: 20.25″, 514mm
• Weight: 195lbs, 89kg
• Accuracy – Load Measurement: Load Cell Dependant
• Accuracy – Strain Measurement: +/-0.5% of reading down to 1/50 of full scale with ASTM E83 class B or ISO 9513 class 0.5 extensometer
• Load Cell Sensor Models: Models FLC Series, MLC Series, or ULC Series
• Extensometer I/O: 2 channels for independent connection to an extensometer(s)
• USB I/O: I/O Standard
• Power: Single Phase Voltage (Vac) +/-10% 100, 120, 200, or 240
• Operating Temperature: 50 to 100F, (10 to 38F)
• Humidity Range: 10 to 90% non-condensing
• CE Compliant: Yes

Low Profile Load Cell Sensors

• MLC-125 (125N, 12.5 KGF, 28 LBF)
• MLC-250 (250N, 25 KGF, 56 LBF)
• MLC-500 (500N, 50 KGF, 112 LBF)
• MLC-1000 (1000N, 100 KGF, 225 LBF)
• MLC-2500 (2500N, 250 KGF, 562 LBF)

Ultra Low Profile Load Cell Sensors

• ULC-1500 (1500N, 150 KGF, 337 LBF)
• ULC-2500 (2500N, 250 KGF, 562 LBF)

Economy S-Beam Load Cell Sensors

• FLC-50E (50N, 5 KGF, 11 LBF)
• FLC-100E (100N, 10 KGF, 22 LBF)
• FLC-200E (200N, 20 KGF, 45 LBF)
• FLC-500E (500N, 50 KGF, 112 LBF)
• FLC-1000E (1000N, 100 KGF, 225 LBF)
• FLC-2000E (2000N, 200 KGF, 450 LBF)
• FLC-2500E (2500N, 250 KGF, 562 LBF)

Sealed S-Beam Load Cell Sensors

• FLC-500 (500N, 50 KGF, 112 LBF)
• FLC-1000 (1000N, 100 KGF, 225 LBF)
• FLC-2000 (2000N, 200 KGF, 450 LBF)
• FLC-2500 (2500N, 250 KGF, 562 LBF)

Premium S-Beam Load Cell Sensors

• FLC-5P (5N, 0.5 KGF, 1 LBF)
• FLC-10P (10N, 1 KGF, 2 LBF)
• FLC-25P (25N, 2.5 KGF, 5 LBF)
• FLC-50P (50N, 5 KGF, 11 LBF)
• FLC-100P (100N, 10 KGF, 22 LBF)
• FLC-250P (250N, 25 KGF, 56 LBF)
