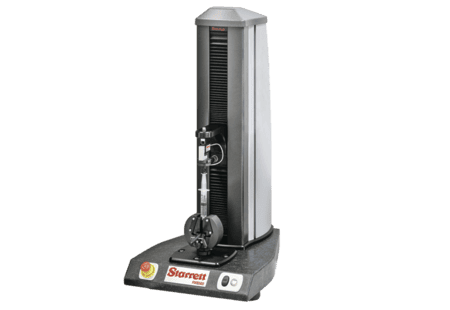

Starrett MMS-500-L3 Material Measurement System

Price by Request

Turnkey 500N (112lbf) Material Measurement System includes Testing Frame, L3 Controller with L3 Force Measurement Software
Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
Perform Complex Multi-stage Testing Using Advanced Test Builder Application
Small, Compact Footprint (15″W x 20.25″D)
Use the Analysis Tools to Measure and Display Results on a Single Graph
High Resolution Encoder for Precise Position Control Resolution
Dual Strain Channels for Extensometers

Frame Type: Single Column
User Interface: All-In-One PC
Load Capacity: 500N, 112lbf, 50kgf
Maximum Speed: 60″/min, 1525mm/min
Minimum Speed: 0.00004″/min, 0.001mm/min
Maximum Load @ Full Speed: 500N, 112lbf, 50kgf
Maximum Speed @ Full Load: 60″/min, 1525mm/min
Return Speed: 60″/min, 1525mm/min
Total Crosshead Travel: 15″, 381mm
Total Vertical Test Space: 22″, 559mm
Crosshead Throat Depth: 4.25″, 108mm
Height: 32″, 813mm
Width: 15″, 381mm
Depth: 20.25″, 514mm
Weight: 130lbs, 59kg
Accuracy – Load Measurement: Load Cell Dependant
Accuracy – Strain Measurement: +/-0.5% of reading down to 1/50 of full scale with ASTM E83 class B or ISO 9513 class 0.5 extensometer
Load Cell Sensor Models: Models FLC Series, MLC Series, or ULC Series
Extensometer I/O: 2 channels for independent connection to an extensometer(s)
USB I/O: I/O Standard
Power: Single Phase Voltage (Vac) +/-10% 100, 120, 200, or 240
Operating Temperature: 50 to 100F, (10 to 38F)
Humidity Range: 10 to 90% non-condensing
CE Compliant: Yes
