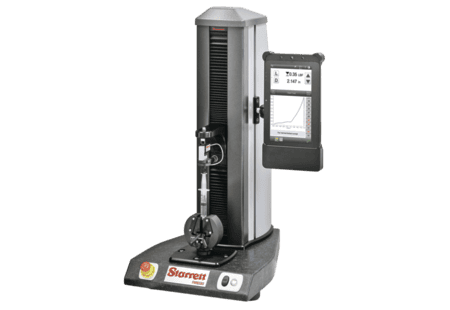

Starrett FMS-500-S2 Spring Test System
Price by Request
Savings: N/A
Starrett FMS-500-S2 Spring Test System Features
Features
- Turnkey 500N (112lbf) Spring Testing System includes Testing Frame, S2 Controller with S2 Software
- Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
- Perform Basic Force Test Methods Quickly with Easy-to-Use Test Templates
- Perform Complex Multi-stage Testing Using Advanced Test Builder Application
- Small, Compact Footprint (15″W x 20.25″D)
- Conforms to All Relevant European Standards and Carries CE Mark
Specifications
- Frame Type: Single Column
- User Interface: Tablet PC
- Load Capacity: 500N, 112lbf, 50kgf
- Maximum Speed: 60″/min, 1525mm/min
- Minimum Speed: 0.001″/min, 0.02mm/min
- Maximum Load @ Full Speed: 500N, 112lbf, 50kgf
- Maximum Speed @ Full Load: 60″/min, 1525mm/min
- Return Speed: 60″/min, 1525mm/min
- Total Crosshead Travel: 15″, 381mm
- Total Vertical Test Space: 22″, 559mm
- Crosshead Throat Depth: 4.25″, 108mm
- Height: 32″, 813mm
- Width: 15″, 381mm
- Depth: 20.25″, 514mm
- Weight: 130lbs, 59kg
- Accuracy – Speed (Zero to Constant Load): +/-0.2%
- Accuracy – Load Measurement: Load Cell Dependant
- Accuracy – Strain Measurement: N/A
- Load Cell Sensor Models: Models FLC Series, MLC Series, or ULC Series
- Extensometer I/O: I/O Not Availible
- USB I/O: I/O Standard
- Power: Single Phase Voltage (Vac) +/-10% 100, 120, 200, or 240
- Operating Temperature: 50 to 100F, (10 to 38F)
- Humidity Range: 10 to 90% non-condensing
- CE Compliant: Yes
Accessories
Low Profile Load Cell Sensors
Economy S-Beam Load Cell Sensors
- FLC-50E (50N, 5 KGF, 11 LBF)
- FLC-100E (100N, 10 KGF, 22 LBF)
- FLC-200E (200N, 20 KGF, 45 LBF)
- FLC-500E (500N, 50 KGF, 112 LBF)
Sealed S-Beam Load Cell Sensors
Premium S-Beam Load Cell Sensors
