Renishaw SP80 Scanning Probe System
Price by Request
Savings: N/A

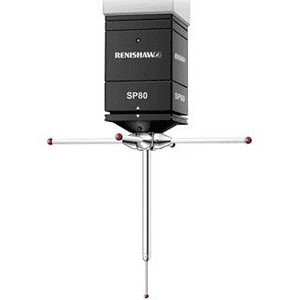

Combining long stylus reach with ultra-high accuracy performance, SP80 is the first-choice scanning probe for many applications.
SP80 is able to reach deep into parts by carrying styli up to 1000 mm long and 500 g mass, including star configurations which do not require counterbalancing. Renishaw’s M5 styli products are designed to complement SP80 and ensure peak performance.
Renishaw SP80 Scanning Probe System Features
Features
- Ultra-high accuracy measurement, provided by digital scale and readheads – system resolution of 0.02 µm (79 µin)
- Long stylus carrying capability for access to deep features – up to 1000 mm (39.4 in) and 500 g (17.64 oz) mass on SP80
- Unbalanced stylus configurations do not require counterbalancing
- SP80H variant mounts to horizontal quill – styli up to 500 mm (7.87 in) long and 500 g (17.64 oz) mass
- Isolated optical metrology for direct accurate measurement of stylus deflection
- Low inertia mechanism for excellent dynamic response
- Passive scanning probe with no motors, giving improved thermal stability and reliability
- Bump-stop crash protection in the Z axis, together with a detachable stylus holder for XY crash protection
- Adaptor plates enable rapid interchange between SP80 and PH10MQ PLUS motorised head
- Kinematic stylus changing for repeatable relocation of the optimum stylus configuration – removes the need for requalification
Specifications
| Probe attributes | Ultra-high accuracy scanning probe with three axis measurement (±PX, ±PY, ±PZ) * |
|---|---|
| Orientation | Vertical |
| Size | 80 mm × 80 mm (3.15 in × 3.15 in) body, 150 mm (5.91 in) long including SH80 stylus holder |
| Quill mounting |
KM80 – 80 mm × 80 mm quill to kinematic SP80 quill mount (standard) KM6080 – 60 mm × 60 mm quill to 80 mm × 80 mm kinematic SP80 probe mount (option) SM80 – shank mount and other custom made adaptor plates available – contact your Renishaw supplier for details |
| Measurement range | 3-axis measurement: ±2.5 mm (±0.12 in) (PX, PY, PZ)* |
| Overtravel range | PX* and PY* protected by breakout of the kinematic joint to the SH80 PZ* has a mechanical ‘bump-stop’ |
| Resolution of digital scales | 0.02 μm |
| Measurement capability test to ISO10360-2 ** | Typically <1.0 μm with a 50 mm stylus |
| Scanning capability test to ISO10360-4 ** | Typically <1.5 μm MPETHN with a 50 mm stylus Time for typical scan = 74 s |
| Return to zero | Approximately 1% of working deflection |
| Spring rate | Approximately 1.8 N/mm (X, Y, Z) |
| Stylus carrying capability |
Renishaw M5 stylus range Maximum 500 g mass (unbalanced) Maximum 1000 mm projection # |
| Mass |
SP80 probe body only: 860 g SH80 stylus holder: 185 g KM80 quill mount: 110 g |
| Pull off force of SH80 | <20 N when using SCP80 – otherwise approximately 80 N |
| Probe power supply | +9 V to +18 V @ 300 mA maximum dc |
| System power supply (including IU80) | +5 V ±0.25 V @ 1 A maximum dc |
| SP80 probe outputs (PX, PY, PZ) * | 1.5 V ±0.25 V p-p. analogue quadrature signal (nominal 2.5 V zero crossing reference) |
| Interfacing options |
|
| Change rack system |
SCP80 units mounted to MRS / MRS2 SCP80V units mounted to MRS / MRS2 for rear facing styli |
