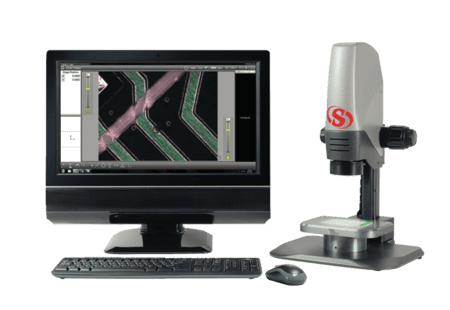

Starrett KineMic KMR-FOV-M3 Video Inspection Microscope
Price by Request
Savings: N/A
Starrett KineMic KMR-FOV-M3 Video Inspection Microscope Features
Features
Optics : 6 telecentric lenses CCD Sensor / Resolution : 2.02 Mpixel Camera Interface : USB Cable Computer : All-in-one PC Software : MetLogix M3 Video Screen : 21.5″ all-in-one PC Screen Resolution : 1920 x 1080 Lens Magnification : .30x, .50x, .80x, 1.0x, 2.0x, 4.0x Screen Magnification : 13x to 178x Field of View (X-Axis) : 1.8 to 24 mm X-Y Stage Motion (inch) : None Metrology Means: MetLogix M3 FOV Software
Measurement Resolution : Up to 2µm Measurement Accuracy : Up to +/-2.5µm Basic Stand : Standard LED Back Light : Standard LED Ring Light : Standard Lighting Control : Via M3 Software Video Inspection : Yes Basic Dimensions : VED Geometric Constructs : Yes Image Annotation : Yes Image Archiving : Yes Video Edge Detection : Yes
Options
Basic Stand : Standard LED Back Light : Standard LED Ring Light : Standard Lighting Control : Via M3 Software Video Inspection : Yes Basic Dimensions : VED Geometric Constructs : Yes Image Annotation : Yes Image Archiving : Yes Video Edge Detection : Yes
.
